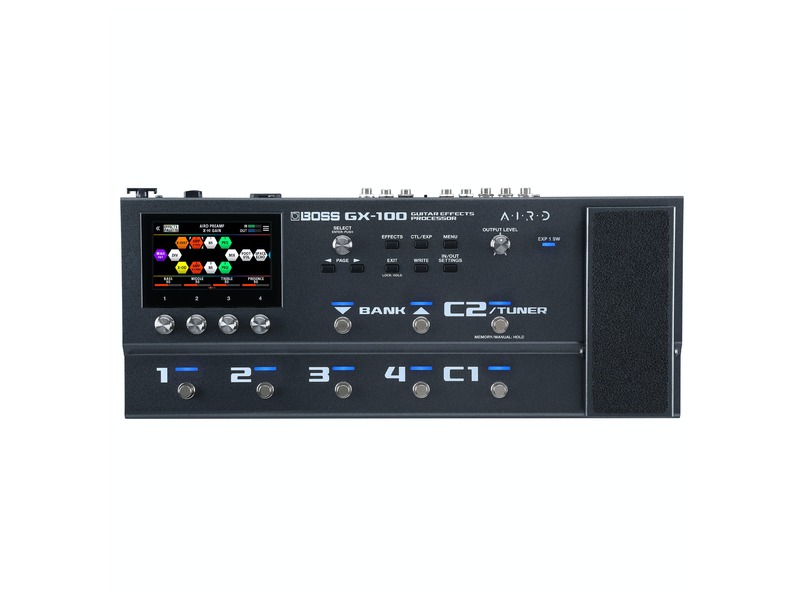

Boss GX-100 Guitar Effects Processor

Fusing advanced BOSS tone technologies into a sleek, ultra-modern hardware design, the inspiring GX-100 delivers top-level performance everywhere you play. Explore 23 AIRD amplifiers and over 150 effects derived from the flagship GT-1000, and craft great sounds in seconds with the intuitive color touch display. Up to 15 simultaneous effect blocks provide unlimited tone possibilities, coupled with deep real-time command via onboard footswitches, an expression pedal, and external control support.

• Sampling Frequency: 48 kHz

• AD Conversion: 24 Bits, AF Method
• DA Conversion: 24 Bits
• Processing: 32-Bit Floating Point
• Effects: 154 Types
• Maximum Number of Effects: 15+3 (Divider/Mixer, Send/Return, Loop)
• Memories: 200 (User), 100 (Preset)
• Phrase Loop: 38 sec. (Mono), 19 sec. (Stereo)
• Display: Colour Graphic LCD (480 x 272 Dots) Touch Screen

Connectors

• Input Jack, Output (L/Mono, R) Jacks, Send Jack, Return Jack: 1/4-Inch Phone Type
• Phones Jack: Stereo 1/4-Inch Phone Type
• CTL3, 4/EXP2 Jack, AMP CTL1, 2 Jack: 1/4-Inch TRS Phone Type
• MIDI (In, Out) Connectors
• USB Computer Port: USB B Type
• Bluetooth Adaptor Port: BT-DUAL Adaptor
• DC IN Jack

Power Requirements

• Power Supply: AC Adaptor
• Current Draw: 1.2 A

Dimensions & Weight

• Dimensions: 460 (W) x 193 (D) x 73 (H) mm
• Weight: 3.5 kg

Accessories

• AC Adaptor (PSB-1U + AC Cord Set)
• Owner's Manual
• Leaflet

Options (Sold Separately)

• Footswitch: FS5U, FS-5L, FS-6, FS-7
• Expression Pedal: EV-30L, FV-500L, FV500H, Roland EV-5
• Bluetooth Adaptor: BT-DUAL

• Powerful, easy-to-use amp/effects processor for guitar and bass
• 24-bit AD/DA, 32-bit floating-point processing, and 48 kHz sampling rate
• Authentic tube amplifier tone and touch response with AIRD technology
• 23 amplifier types and over 150 BOSS effects
• Ultra-flexible amp/effect routing with 15 assignable blocks
• Wide selection of onboard speaker types and support for loading WAV speaker IRs
• Streamlined modern design with intuitive color touch display and rugged metal chassis
• Unlimited effects control with freely assignable onboard footswitches and expression pedal with toe switch
• Connect up to two footswitches or an expression pedal for expanded control
• Send/return loop for external pedals or four-cable method
• Control jack for remote channel switching on your amplifier
• MIDI I/O jacks and multi-channel computer recording via USB
• Edit sounds from your computer with BOSS Tone Studio for macOS and Windows
• Optional Bluetooth® Audio MIDI Dual Adaptor allows you to edit sounds and stream audio from an iOS or Android mobile device
