MPN: PLEVE30M-AA
£949.00
This pre owned item is in good condition with a few signs of light wear.

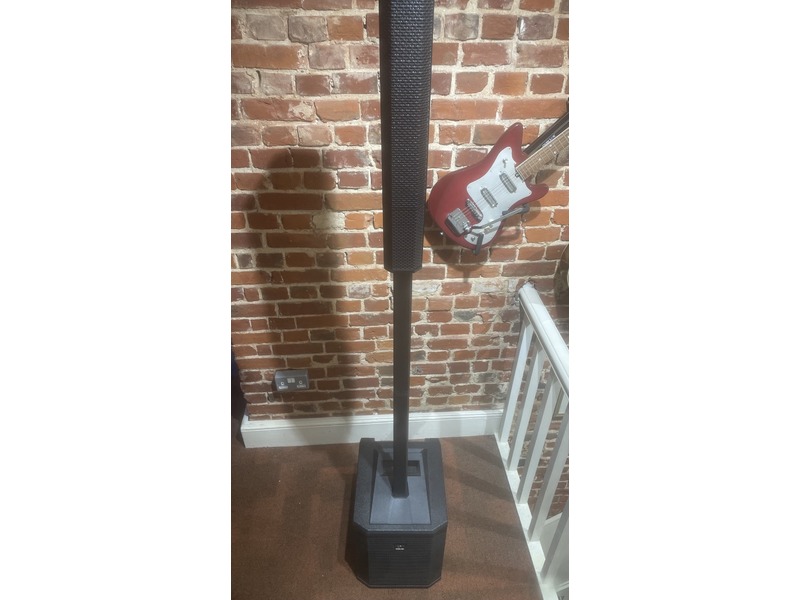

The EVOLVE 30M delivers an impressive combination of performance, versatility and portability, offering a feature set that sets it apart in its class. At its heart is an eight-channel digital mixer with studio-quality onboard effects, while the next-generation Electro-Voice QuickSmart Mobile app provides convenient remote control over audio, effects and mixing functions. High-resolution, low-latency Bluetooth streaming also makes it ideal for music playback and accompaniment.
The EVOLVE 30M combines premium performance with a sleek, professional design. Its full-range column array features six lightweight 2.8" neodymium drivers, delivering ultra-wide 120° horizontal coverage through proprietary waveguides. The array also provides 40° asymmetrical vertical coverage, helping direct sound effectively towards both seated and standing audiences.
The 10" subwoofer is housed in a rigid 15 mm wood enclosure for enhanced acoustic performance, while a Class-D amplifier delivers up to 1000 W of output power. The column array and subwoofer connect via a two-piece symmetrical aluminium pole featuring internal wiring and magnetically assisted latching for quick and secure setup.
Electro-Voice QuickSmart DSP provides straightforward control of the system's parameters through the built-in LCD and single-knob interface, or remotely via the QuickSmart Mobile app. The system offers four presets covering Music, Live, Speech and Club applications, along with a three-band system EQ and a seven-band graphic EQ when operating in Mixer mode.
Additional features include five user-programmable presets for storing and recalling settings, phantom power, limiter status monitoring, individual input level controls and meters, plus master volume control for precise gain management.
The EVOLVE 30M incorporates a fully featured digital mixer developed in collaboration with Dynacord's professional audio engineering team. Multiple inputs with high-quality preamps provide a wide range of connection and mixing options, while the mixer can be controlled directly from the LCD and single-knob interface or remotely through the QuickSmart Mobile app.
Designed with musicians and live performers in mind, the EVOLVE 30M includes independent channel auxiliary sends, Hi-Z inputs and a footswitch input for flexible setup options. Its built-in effects section provides 30 studio-quality presets, including chorus, delay, flange and reverb, across two FX channels.
These onboard effects give performers plenty of options for shaping their sound while reducing the amount of additional equipment needed for a gig. Effects can be adjusted conveniently through either the QuickSmart Mobile app or the integrated LCD and single-knob control.
| Frequency response (-3 dB)1 | 51 Hz to 20 KHz |
| Frequency range (-10 dB)1 | 45 Hz to 20 KHz |
| Maximum SPL2 | 123 dB |
| Coverage (H x V) | 120° x 40° |
| Amplifier rating | 1000 W |
| LF channel rating | 500 W |
| HF channel rating | 500 W |
| Crossover frequency | 200 Hz |
| Connectors | 4x XLR/TRS Combo Jack Line / Mic Input 1x 1/4" TRS HI-Z input 2x XLR/TRS Combo Jack for Stereo Line Input 1x Stereo RCA Input 1x 3.5 mm Stereo Input 1x Wireless Stereo Bluetooth® Audio Input 1x 1/4" Foot Switch Input 1x XLR MIX OUT Output 1x XLR AUX OUT Output |
| Enclosure | Sub: 15 mm plywood Column: Composite Pole: Aluminum Grille: Steel with black or white powder coat |
| Color: | Black or white |
| Dimensions (HxWxD): mm (in) | Sub: 448 x 332 x 432 (17.6 x 13.1 x 17) Column: 620 x 95 x 157 (24.4 x 3.7 x 6.2) Pole (2 pcs): 600 x 48 x 55 (23.6 x 1.9 x 2.2) |
| Net weight | Sub: 34.9 lb (15.8 kg) Column: 6.0 lb (2.7 kg) Pole (2 pcs): 3.1 lb (1.4 kg) Bag for column and pole: 1.9 (0.85 kg) |
| Shipping weight | 53.4 lb (24.2 kg) |
| Power consumption3 | 100-240 V AC, 50-60 Hz, 1.5-0.6 A |
