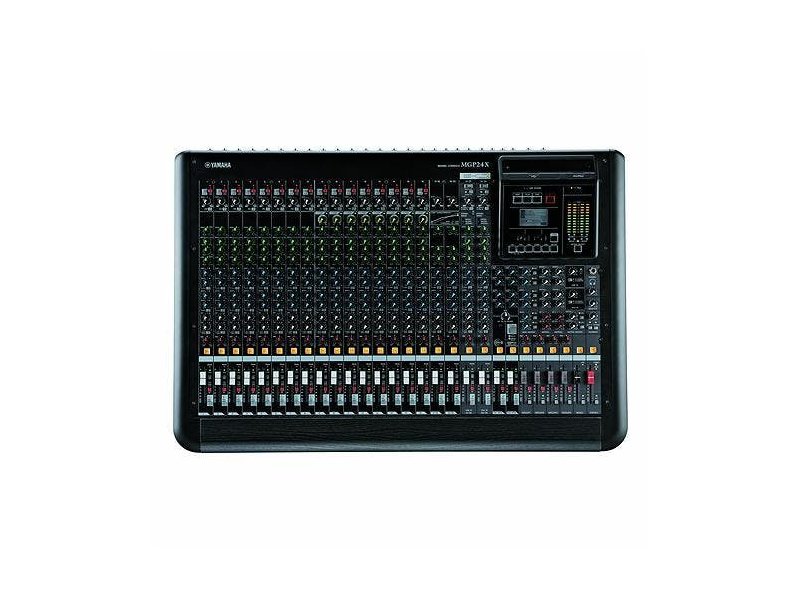

Yamaha MGP24X Premium 24 Channel Mixer

MPN: MGP24X

Availability: in stock

£1,199.00

descriptionspecificationfeatures

This is what Yamaha say about the MGP24X Mixer:

The Yamaha MGP-24X is a 24-channel live sound mixer that combines professional-grade audio quality, advanced functionality, and portability—all at a cost-effective price. Tailored for touring musicians, live sound venues, and audio professionals, it features 16 mic inputs with discrete Class D-PRE preamps that deliver rich, warm tones. Equipped with dual digital effects processors (REV-X and Classic SPX), the MGP-24X offers a studio-quality sound experience in a live setting.

Versatile connectivity options, including USB recording/playback, iPod/iPhone integration, and a 31-band graphic EQ, make it adaptable for a wide range of live sound applications. Its Hybrid Channel DSP tools—like Leveler, Stereo Imager, and Priority Ducker—enhance both live performance and installed sound systems. Built for durability and ease of use, the MGP-24X is a reliable solution for both mobile and fixed audio installations.

Outline	Mixing capability	Mixing channels	24 Line Inputs (16 mono and 4 stereo)
		GROUP	4 GROUP Buses + ST Bus
		AUX	6 AUX Sends + 2 FX Sends
		MATRIX	1 Matrix out
		On-board processors	FX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control)
	I/O	Mic inputs	MIC: 16 (INPUTS HPF: 100Hz 12dB/oct)
		Phantom power	48V phantom power per channel
		Line inputs	LINE: 16 mono + 4 stereo, CH INSERT: 16 RETURN: 1 stereo
		Digital I/O	USB Device, iPod / iPhone
General specifications	Total harmonic distortion		0.02% (20Hz-20kHz@ +14dBu)
	Frequency response		+0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz
	Hum & noise level	Equivalent input noise	-128 dBu Equivalent Input Noise
	Hum & noise level	Residual output noise	-92 dBu Residual Output Noise
	Crosstalk		-74dB @ 1kHz
	Power requirements		100-240V 50Hz/60Hz
	Power consumption		86W max
	Dimensions	W	819mm (32.2")
		H	169mm (6.7")
		D	565mm (22.2")
	Net weight		15.5kg (34.2lb)

Input Terminal			Actual Source Impedance	For Use With Nominal	Input Level			Connector
	PAD	GAIN	Actual Source Impedance	For Use With Nominal	Sensitivity ^*1	Nominal	Max. before clip	Connector
MONO CH INPUT MGP32X: 1–24 MGP24X: 1–16	0	-60dB	3kΩ	50-600Ω Mics	-80 dBu (0.078 mV)	-60 dBu (0.775 mV)	-40 dBu (7.75 mV)	XLR-3-31 type ^2 Phone jack ^4
	0	-16dB		50-600Ω Mics	-36 dBu (12.3 mV)	-16 dBu (123 mV)	+4 dBu (1.23 V)	XLR-3-31 type ^2 Phone jack ^4
	26dB	-34dB		600Ω Lines	-54 dBu (1.55 mV)	-34 dBu (15.5 mV)	-14 dBu (155 mV)	Phone jack ^*3
	26dB	+10dB		600Ω Lines	-10 dBu (245 mV)	+10 dBu (2.45 V)	+30 dBu (24.5 V)	Phone jack ^*3
STEREO CH INPUT MGP32X: 25–32 MGP24X: 17–24		-34dB	10kΩ	600Ω Lines	-54 dBu (1.55 mV)	-34 dBu (15.5 mV)	-14 dBu (155 mV)	Phone jack ^*4 RCA Pin Jack
STEREO CH INPUT MGP32X: 25–32 MGP24X: 17–24		+10dB	10kΩ	600Ω Lines	-10 dBu (245 mV)	+10 dBu (2.45 V)	+30 dBu (24.5 V)	Phone jack ^*4 RCA Pin Jack
MONO CH INSERT INPUT MGP32X: 1–24 MGP24X: 1–16			10kΩ	600Ω Lines	-20 dBu (77.5 mV)	0 dBu (0.775 V)	+20 dBu (7.75 V)	Phone Jack ^*5
ST CH INSERT INPUT L,R			10kΩ	600Ω Lines	-20 dBu (77.5 mV)	0 dBu (0.775 V)	+20 dBu (7.75 V)	Phone Jack ^*5
TALKBACK INPUT			10kΩ	50-600Ω Mics	-66 dBu (0.389 mV)	-50 dBu (2.45 mV)	-30 dBu (24.5 mV)	XLR-3-31 type ^*6

Output Terminal	Actual Source Impedance	For Use With Nominal	Output Level		Connector
Output Terminal	Actual Source Impedance	For Use With Nominal	Nominal	Max. before clip	Connector
ST OUT [L,R]	75Ω	600Ω Lines	+4 dBu (1.23 V)	+24 dBu (12.3 V)	XLR3-32 type ^1 Phone jack ^4
MONO OUT	75Ω	600Ω Lines	+4 dBu (1.23 V)	+24 dBu (12.3 V)	XLR3-32 type ^*1
GROUP OUT (1-4)	150Ω	10kΩ Lines	+4 dBu (1.23 V)	+20 dBu (7.75 V)	Phone jack ^*2
AUX SEND (1-6)	75Ω	600Ω Lines	+4 dBu (1.23 V)	+24 dBu (12.3 V)	XLR3-32 type ^*1
MATRIX OUT (1, 2)	150Ω	10kΩ Lines	+4 dBu (1.23 V)	+20 dBu (7.75 V)	Phone jack ^*2
MONO CH INSERT OUT MGP32X: 1–24 MGP24X: 1–16	75Ω	10kΩ Lines	0 dBu (0.775 V)	+20 dBu (7.75 V)	Phone jack ^*3
ST CH INSERT OUT [L,R]	75Ω	10kΩ Lines	0 dBu (0.775 V)	+20 dBu (7.75 V)	Phone jack ^*3
MONITOR OUT [L,R]	150Ω	10kΩ Lines	+4 dBu (1.23 V)	+20 dBu (7.75 V)	Phone jack ^*2
PHONES OUT	150Ω	40Ω Phones	3mW	75mW	ST Phone Jack
