NU-X B-6 Pro Saxophone Wireless Set

B-6 Pro Saxophone Wireless Set

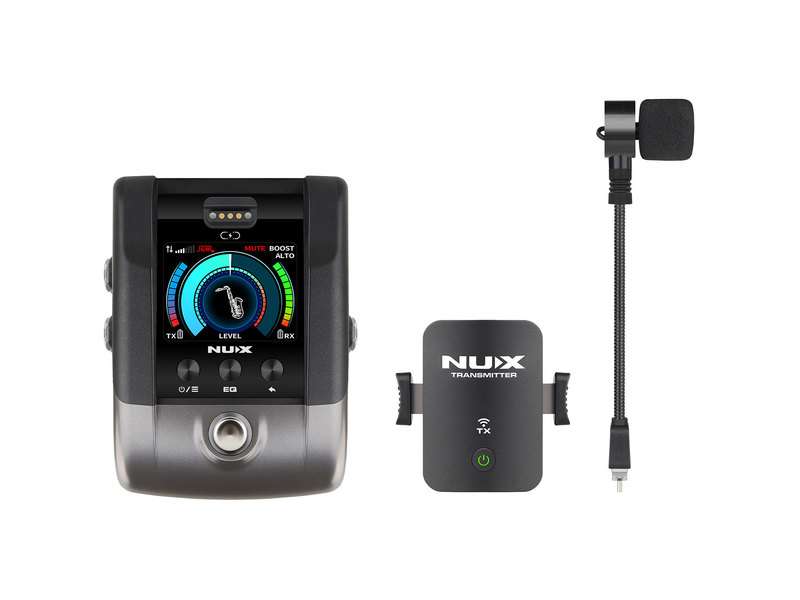

B-6 Pro represents the next level in wireless solutions for saxophones. The transmitter has a precision clamp that adjusts to fit the bell of a saxophone or trumpet. A flexible gooseneck microphone connects to the transmitter and locks in place to be directed for optimum sound pickup. The custom designed electret condenser capsule is mounted into a purpose-built suspension to avoid keying noise and unwanted resonant frequencies. When powered up, the transmitter auto-pairs with the rechargeable stomp-style floor receiver, which also doubles as a digital tuner, DI box and charging station for the transmitter. Wireless transmission is on the license-free 2.4GHz band with an all digital signal path and frequency hopping for continuous and reliable connection. 11 preset EQ profiles and 2 user-editable EQ settings are accessible from the colour on-screen menu, along with tuner display and wireless settings. The top mounted footswitch can be set to switch a signal boost, mute, the tuner or engage the send-return loop, and the footswitch also doubles as a rotary encoder for the onboard menus. Main output is via balanced XLR on the rear of the receiver, with additional send-return and output jacks and a USB-C port for updates and PC audio streaming. B-6 Pro brings the convenience of wireless to saxophone and trumpet players with more professional needs and offers functions above and beyond the feature set of most radio systems.

• Rechargeable transmitter with up to 7 hours play time
• Selectable EQ profiles including 2 user slots
• Switchable boost function for solos
• 2.4GHz band with auto-pairing and frequency hopping
• Ultra low latency down to 3.6ms
• Send-return loop for effects
• XLR and 6.3mm jack outputs

• Microphone : polar patternCardioid
• Power supply9Vdc 1A, pin-negative (adaptor included)
• Microphone : sensitivity-51dB
• Carrier frequencies2400 - 2483.5MHz
• RF output powerMaximum 10mW E.I.R.P.
• Range50m max.
• Latency3.6 - 6.1 - 9.9ms selectable
• Sampling format48kHz 24-bit
• Frequency response20Hz - 20kHz
• Audio output6.4dBV (send/output)
• THD +N<0.01% (typical)
• Dynamic range112dBA (send/output)
• Battery capacity3.7Vdc 500mAh (transmitter), 3.7Vdc 3000mAh (receiver)
• Battery life7 hours (transmitter), 11 hours (receiver) approx.
• Auto power offAfter 10 minutes no wireless connection
• Dimensions (transmitter)61 x 60 x 30mm
• Weight : transmitter60g
• Dimensions : receiver120 x 93 x 60mm
• Weight : receiver420g
