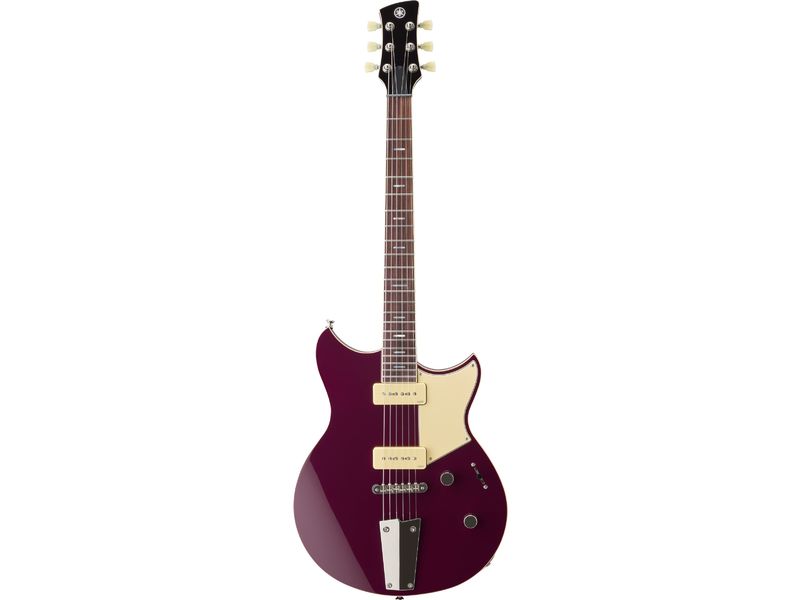

Yamaha Revstar RSS20T - Hot Merlot

With two available pickup configurations, 5-way switching, and the Focus Switch passive boost, the new Revstar Standard is all about versatility.

This Revstar Standard features P90-style single-coil pickups with 5-way switching and the Focus Switch boost, with a custom racing tailpiece.

CHAMBERED BODY WITH ACOUSTIC DESIGN

Revstar Standard guitars feature chambered bodies designed to sculpt tone and reduce weight, with carbon reinforcement in the neck to improve vibration transfer.

5-WAY SWITCHING

With the same 5-way switching as Revstar Professional, the subtle phase shift on positions 2 and 4 offers a fresh take on classic “in-between” sounds.

FOCUS SWITCH

The push/pull Tone control activates a passive boost with an effect similar to overwound pickups—darker highs, increased mids and lows, and an aggressive character.

CHOICE OF PICKUPS

RSS20 and RSS20L feature humbuckers, and RSS02T offers P90-style single-coils. All pickups are custom designed by Yamaha and use Alnico V magnets for powerful tone.

SWITCH ON

The Focus Switch boost on Professional and Standard models, and the Dry Switch filter on Revstar Element, provide even greater versatility.

• Construction: Set-in
• Scale Length: 24-3/4” (628.6mm)
• Body Materials: Top: Maple / Back: Chambered Mahogany
• Body Finish: Gloss Polyurethane
• Neck Materials: 3-Piece Mahogany, Carbon Reinforcement
• Neck Finish: Satin Polyurethane
• Fingerboard Materials: Rosewood
• Fingerboard Radius: 12" (304.8mm)
• Fret wire: Jumbo Stainless steel
• Number of frets: 22
• Nut materials: PPS
• Neck Width @ 0 Fret / 12th Fret: 41.9 / 56.8 mm
• Thickness @1st Fret / 12th Fret: 21.0 / 23.9 mm
• Neck Pickup: VP5n: P90 type Single coil / Alnico V
• Bridge Pickup: VP5b: P90 type Single coil / Alnico V
• Controls: Master Volume, Master Tone (Push-Pull, "Focus Switch")
• Pickup Switch: 5-Position Lever Switch
• Bridge: Tune-O-Matic
• String spacing: 10.5mm
• Tailpiece: Racing Tailpiece
• Tuning Machines: Die-Cast
• Pickguard: 3-Ply Cream
• String gauge: Elixir Nanoweb Light / 0.010-0.046
• Case: Gig Bag
